Accessories

Voice (Calls) feature

Software upgrade with Calls feature for NXS-97XX-4G/5G and MHD-8100-4G line of devices. The upgrade enables wake-up calls & text-to-speech calls *. This feature is ideal for delivering urgent messages or announcements, such as alerts, emergency notifications, or other time-sensitive information.

The Voice feature enables Wake Up Calls (Ring only) and Text-To-Speech (TTS) Automated Calls* in NXS-97XX-4G/5G and MHD-8100-4G devices. This product can be purchased as an extension for both new and existing devices.

* due to hardware limitations, the Text to Speech (TTS) function is only available on NXS hardware Rev. 4 and MHD-8100-4G devices. TTS function works currently for the English language only.

For new devices, the upgrade will be done before shipping the order. If you already own a device and would like to upgrade it to the voice option, contact our Support Center for details for your device.

Price for 1 device (regardless of the number of modems).

Product Code: ACCVOICEM

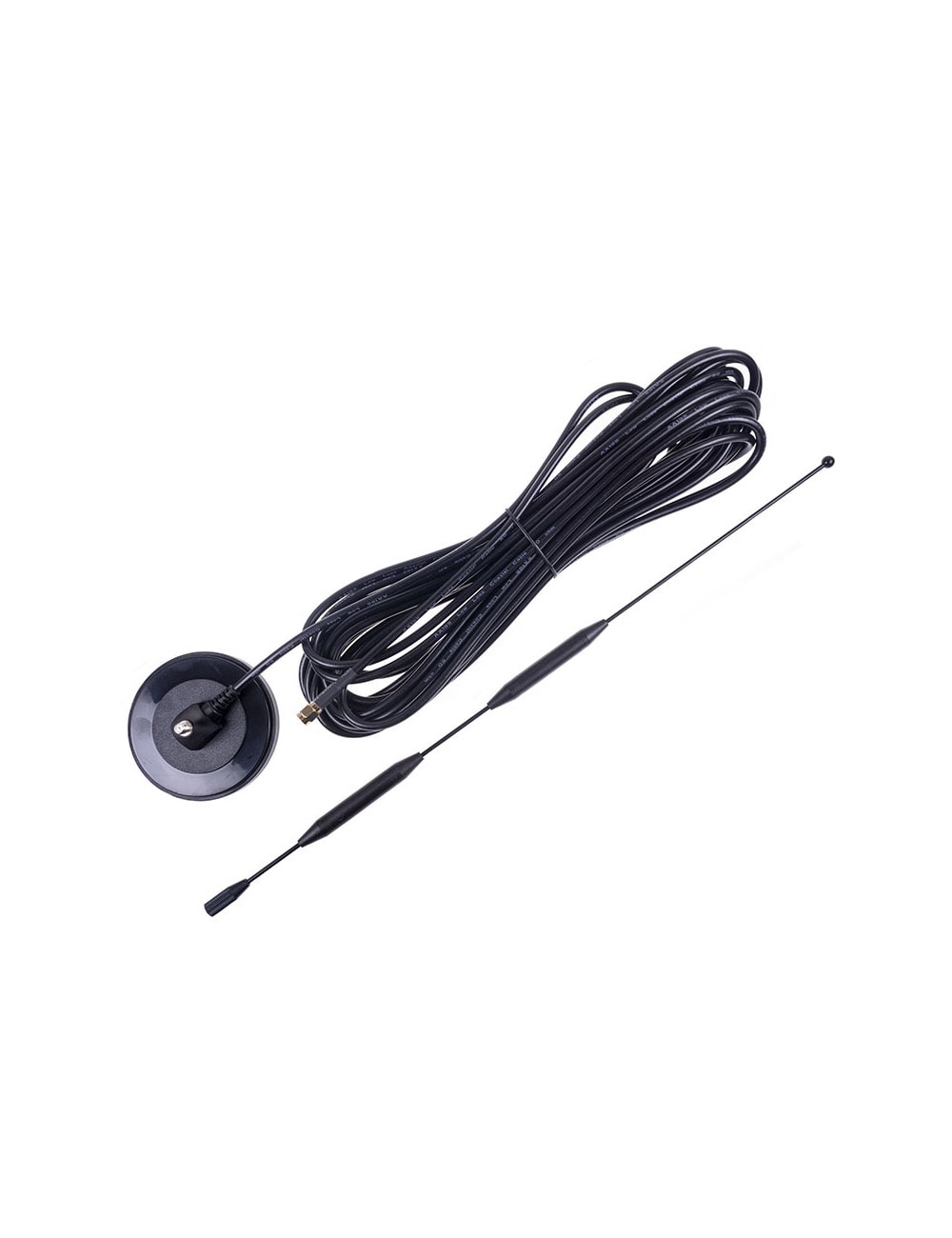

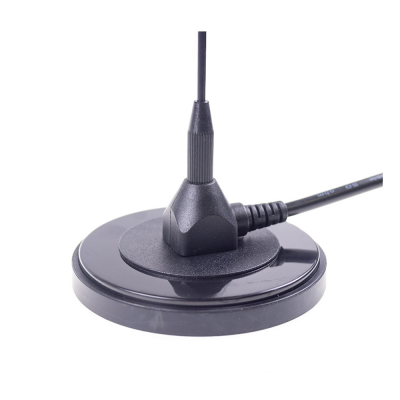

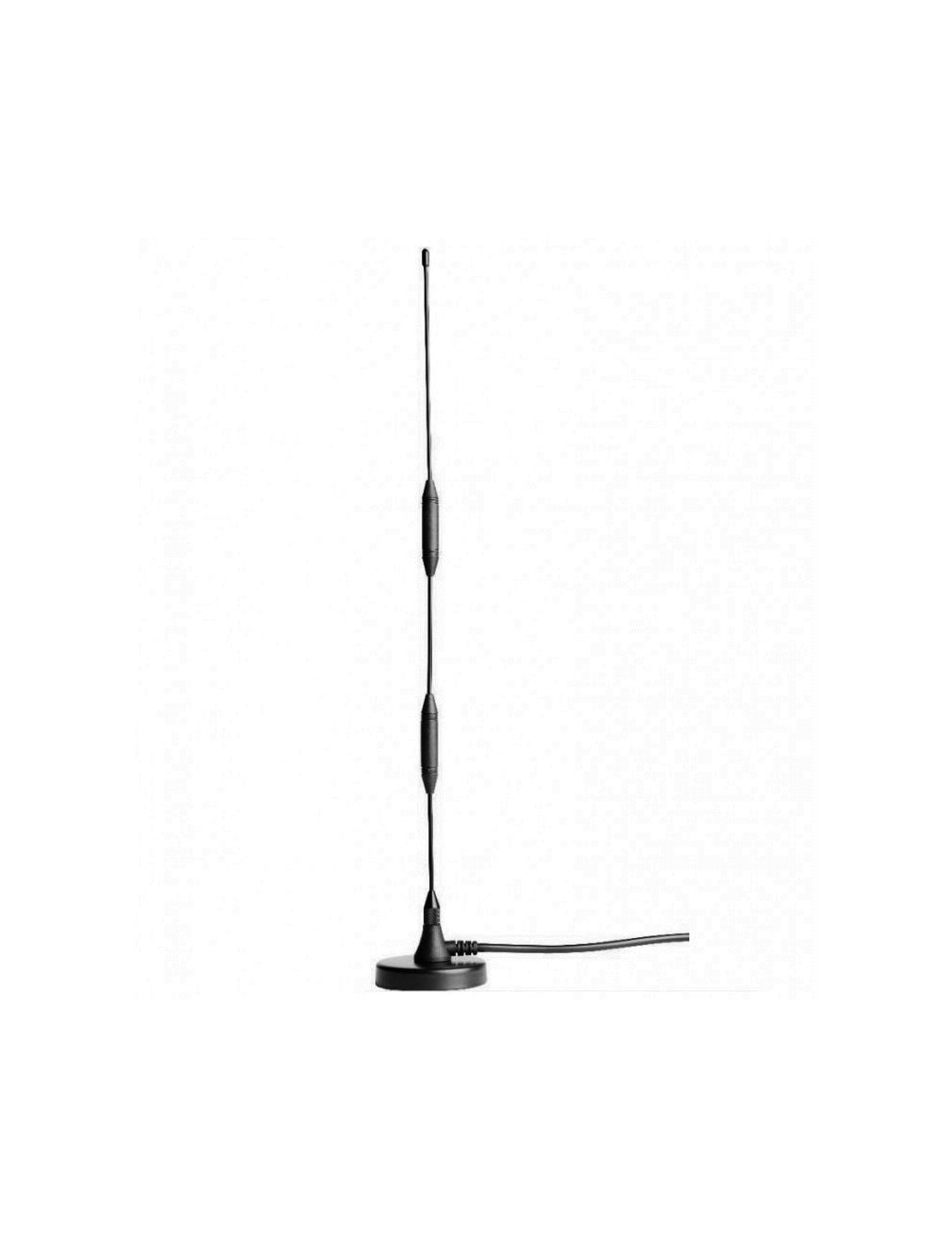

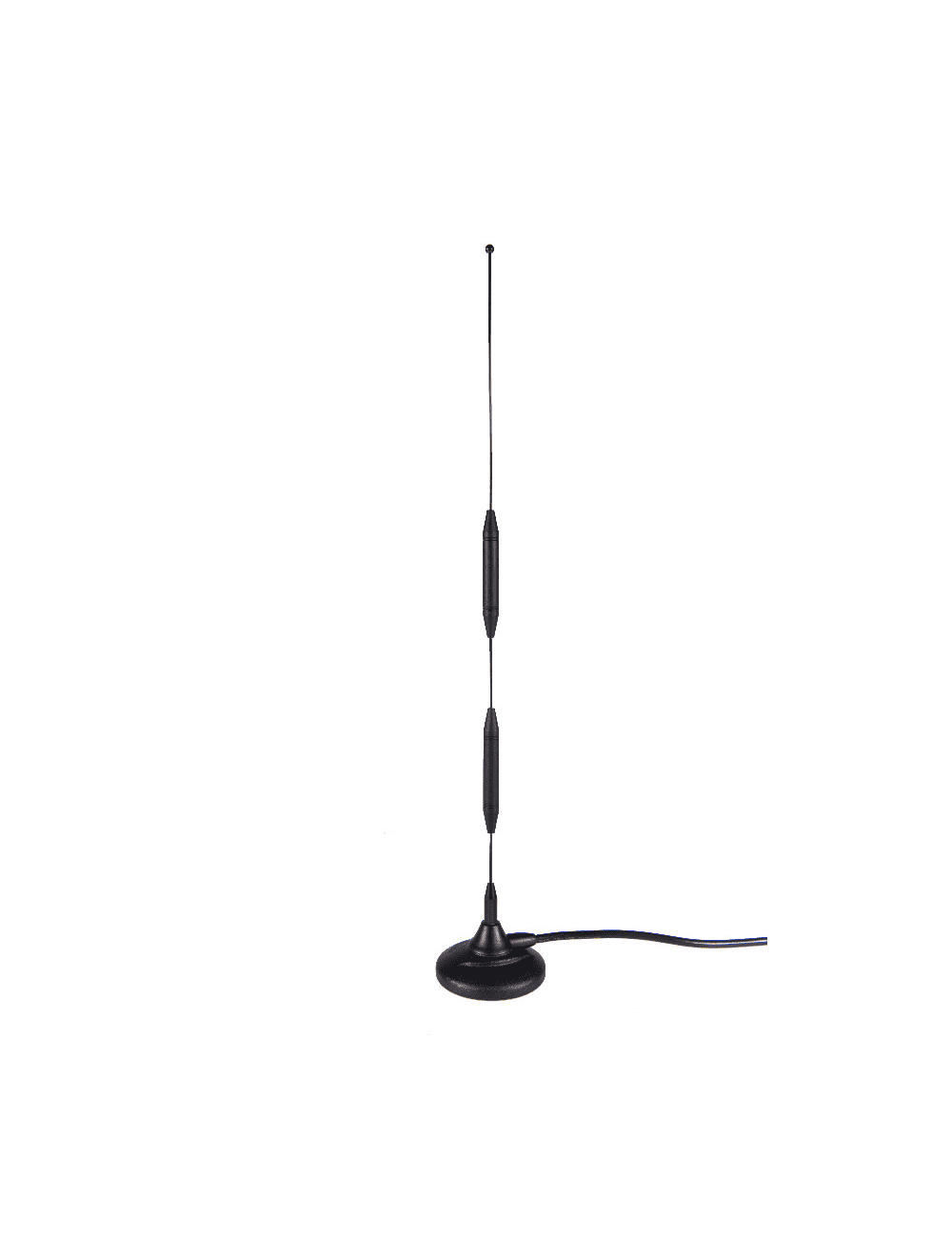

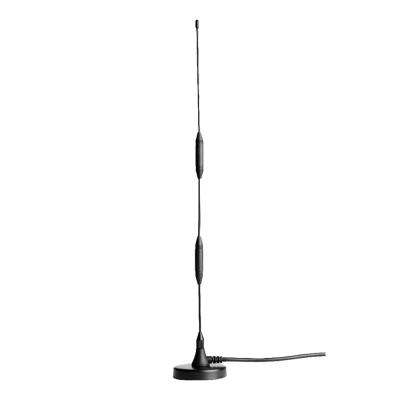

Antenna 4G

Omnidirectional GSM/UMTS/LTE antenna suitable for places with low GSM/3G/4G signal reception. Cable length: 3m

Technology: 2G/3G/4G (GSM/UMTS/LTE)
Frequency range: 700/800/900/1700/1800/1900/2100/2600 MHz
Gain: 5-9dBi
VSWR: <1.8:1
Impedance: 50 Ohm
Connector: SMA (m)
Antenna suitable for outdoor usage

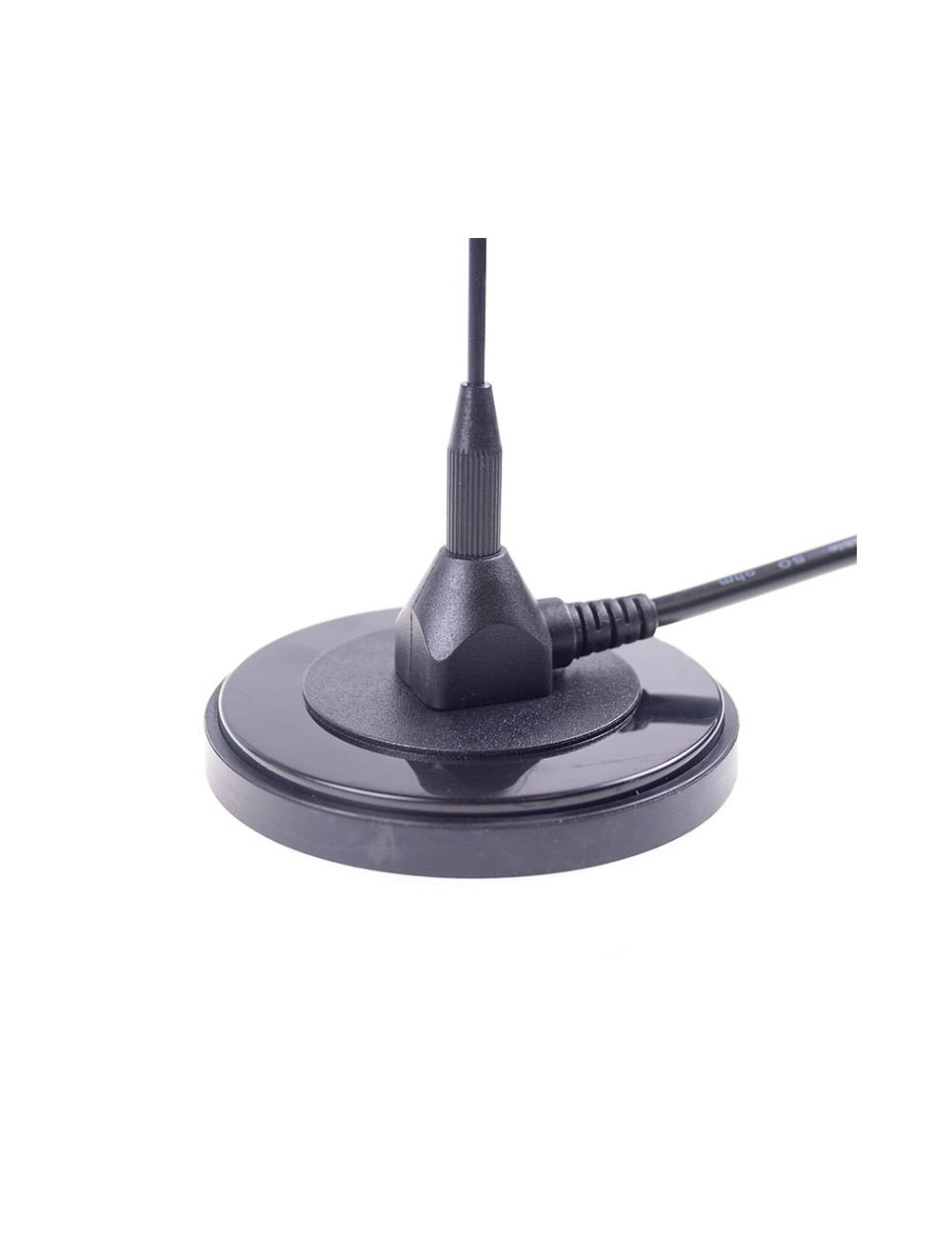

Magnetic base for easy attaching
Cable: low loss, length: 3m or 10m
Weight: 300g
Dimension: 75mm x 445mm

Download PDF

Technical datasheet Antenna 4G 3M

Download PDF

Technical datasheet Antenna 4G 10M

Product Code for 3m: ACCANTENNA4G

Product Code for 10m: ACCANTENNA4G10M

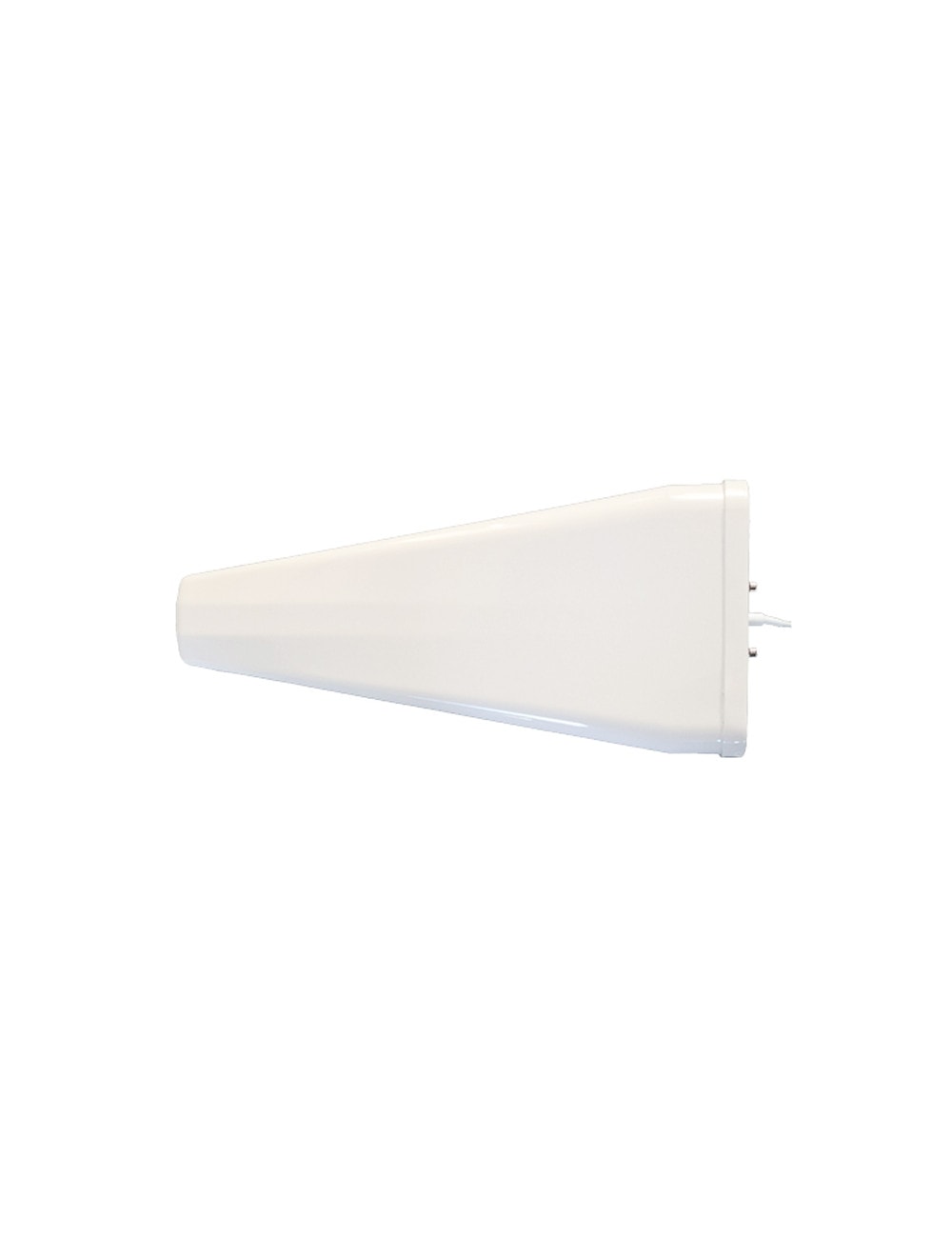

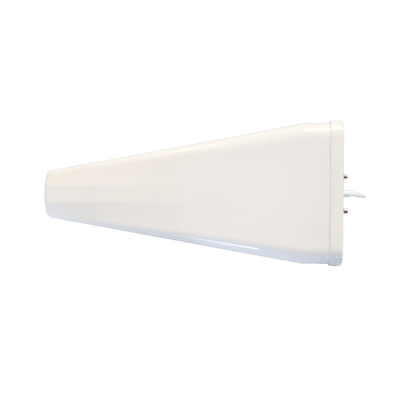

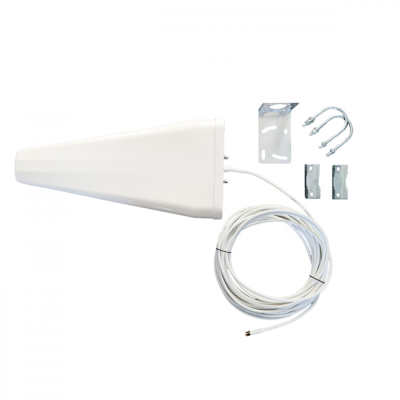

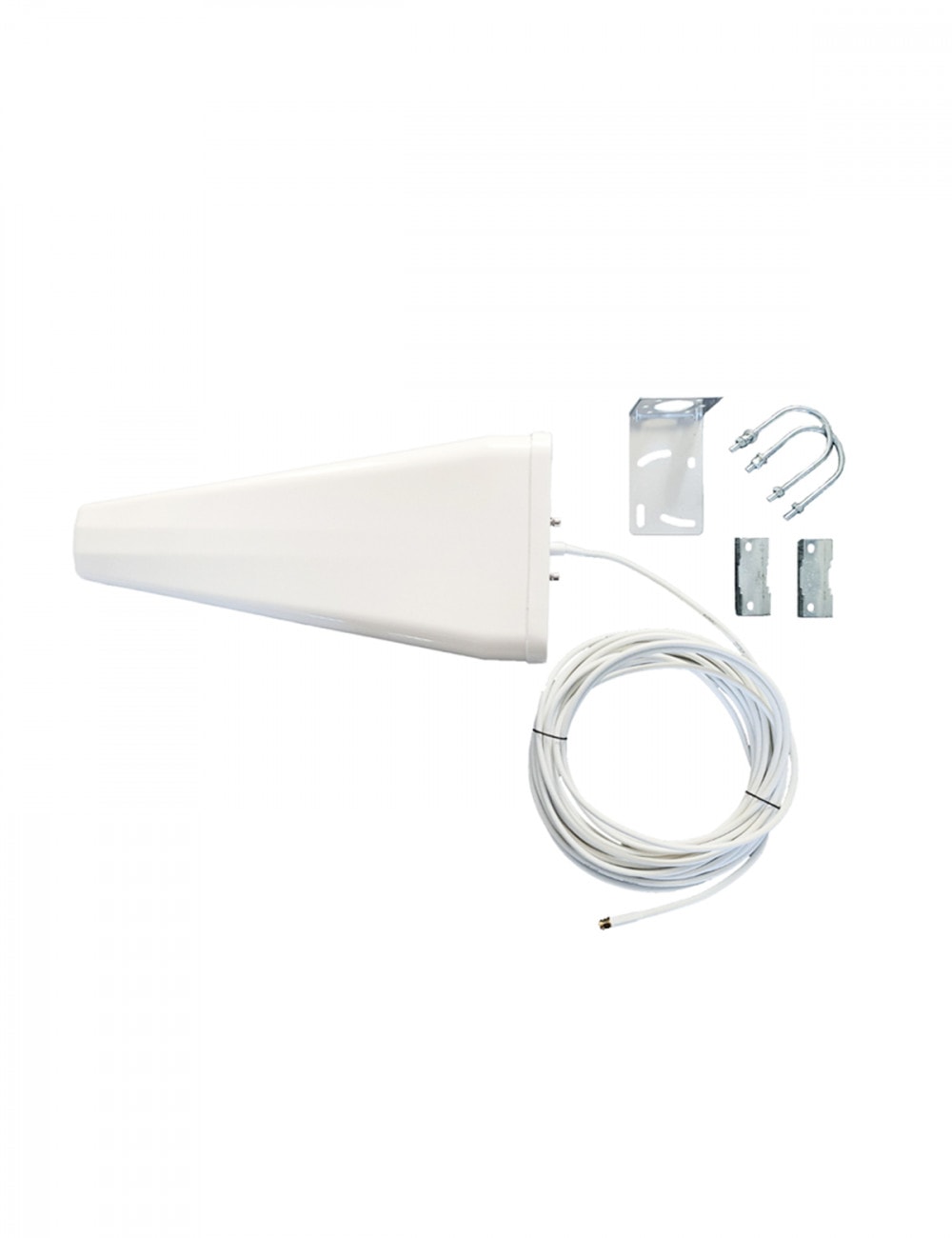

Antenna 4G External 10m

Outdoor GSM/UMTS/LTE antenna suitable for places with low GSM/3G/4G signal reception

Technology: 2G/3G/4G (GSM/UMTS/LTE)
Frequency range: 700/800/900/1700/1800/1900/2100/2400/2500/2600/2700 MHz
Gain: 15dBi
VSWR: <1.3:1
Impedance: 50 Ohm
Connector: SMA (m)
Antenna for outdoor usage
Connector Mount
Cable: low loss, length: 10m
Weight: 840g
Dimension: 445 x 210 x 65 mm

Download PDF

Technical datasheet Antenna 4G External 10M

Product Code: ACCANTENNAEXT10M

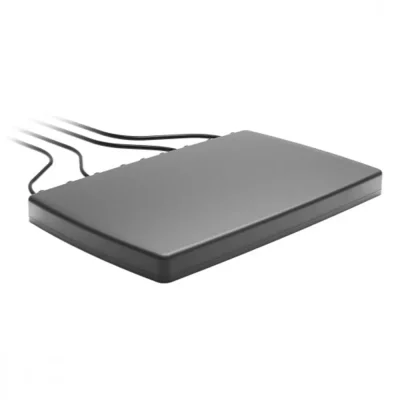

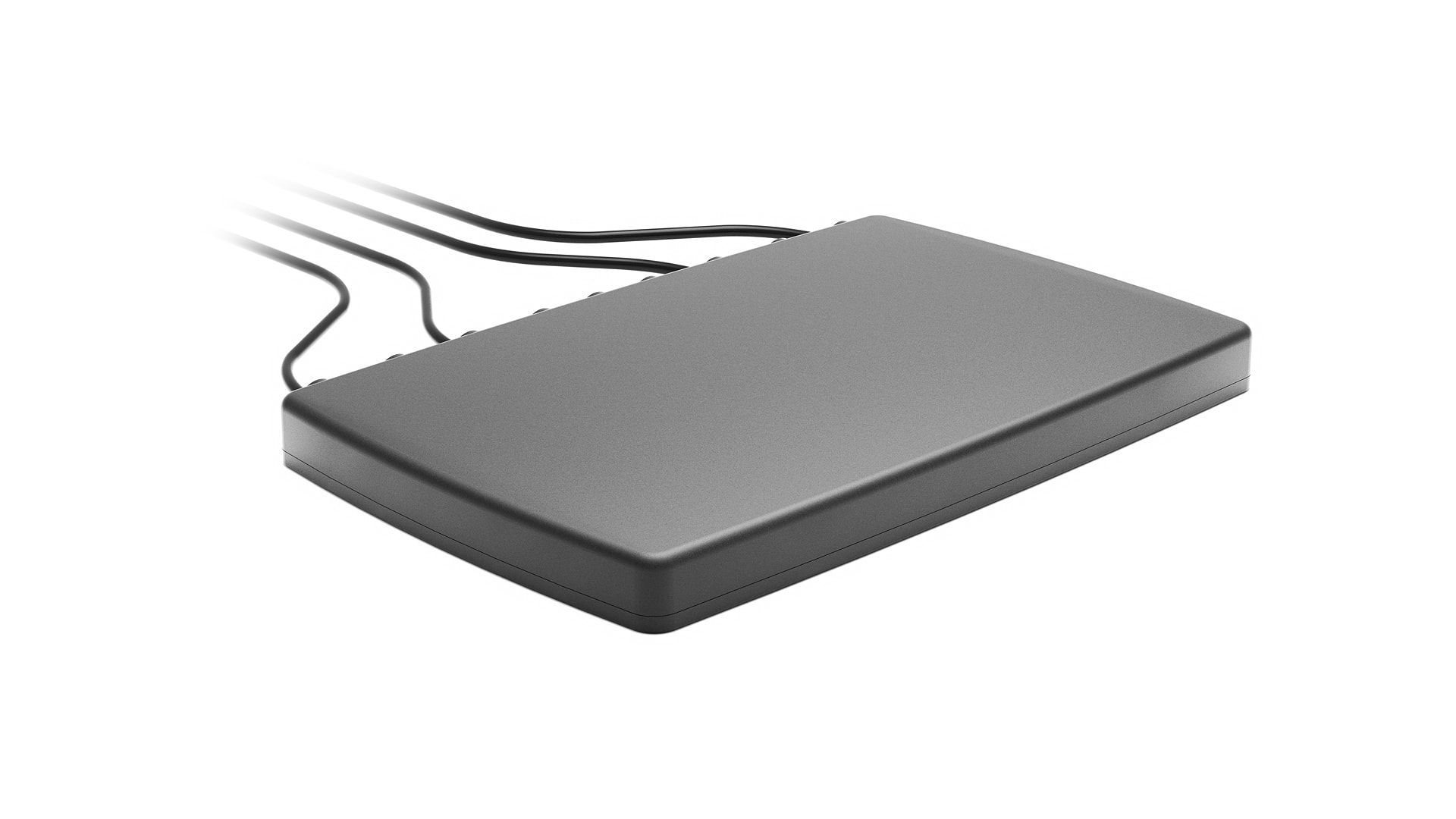

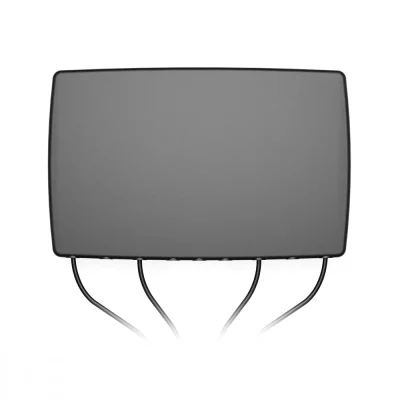

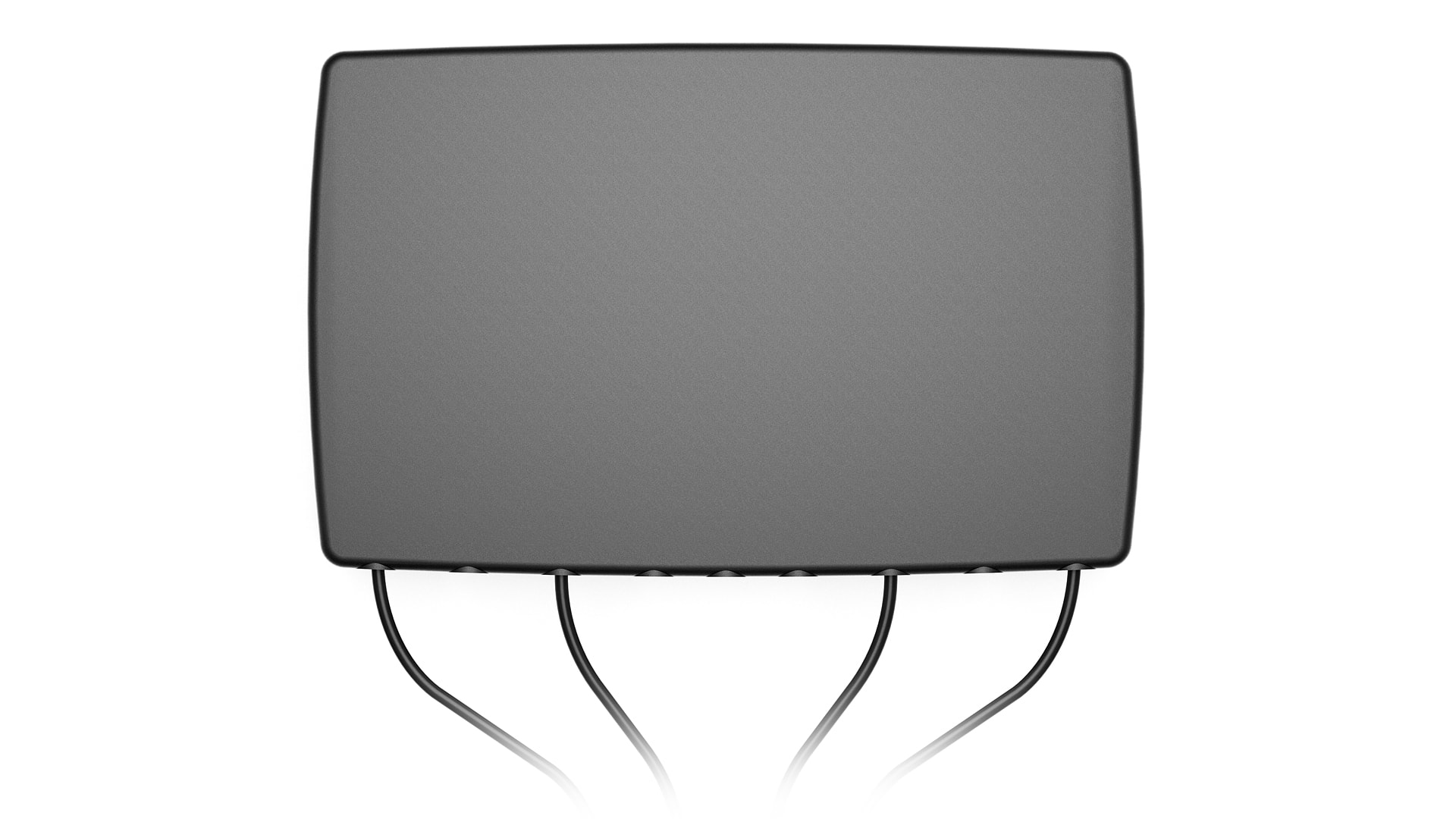

Antenna 5G/4G/3G 4in1

4 antennas in 1 enclosure – suitable for places with low 3G/4G/5G signal reception. Recommended for MHD-8100-4G device. Cable length: 2m.

Frequency range: 4x 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Gain:
Connection 1: ~3.1, ~4.5, ~2.0, ~0.9
Connection 2: ~3.3, ~4.1, ~3.2, ~2.9
Connection 3: ~3.5, ~3.4, ~2.6, ~3.1
Connection 4: ~3.4, ~4.5, ~2.5, ~1.2
VSWR:
Connection 1: ~1.6:1, ~1.6:1, ~1.7:1, ~1.8:1
Connection 2: ~1.5:1, ~1.5:1, ~1.5:1, ~1.4:1
Connection 3: ~1.5:1, ~1.6:1, ~1.7:1, ~1.7:1
Connection 4: ~1.5:1, ~1.4:1, ~1.6:1, ~1.7:1
Impedance: 50 Ohm
Connector: SMA (m)
Adhesive Mount
High Performance
Cable: 4x low loss, 2m
Ground Plane Independent
Dimensions (mm): 198 × 127 × 15.7

Download PDF

Technical datasheet Antenna 5G4G Quad 2m

Product Code: ACCANTENNA5G2M

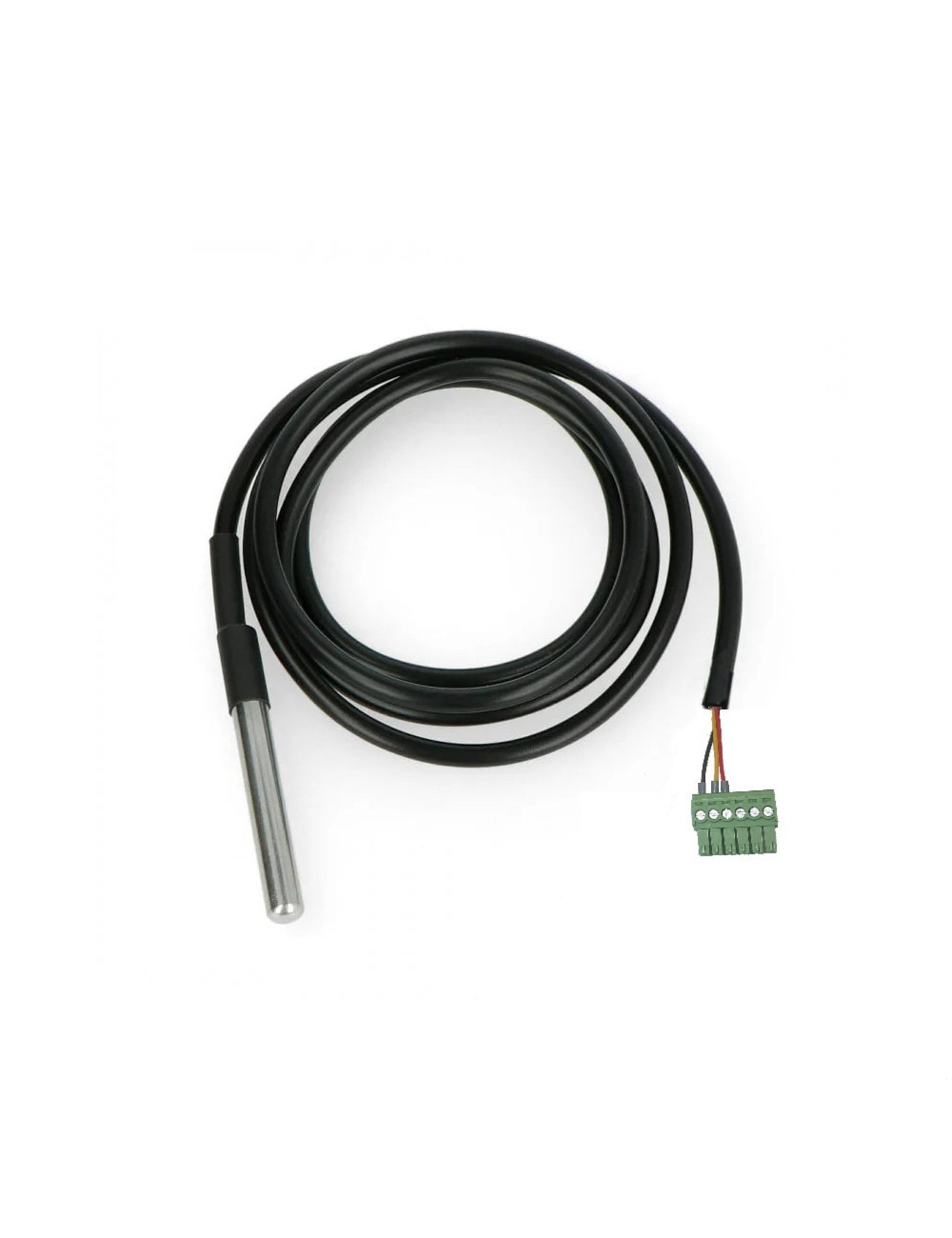

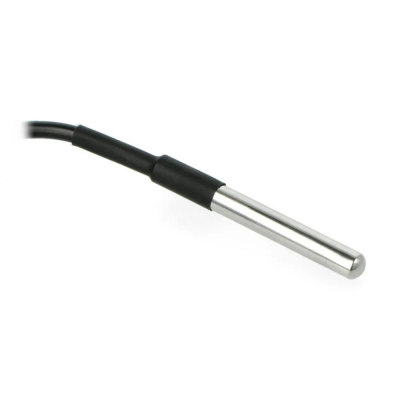

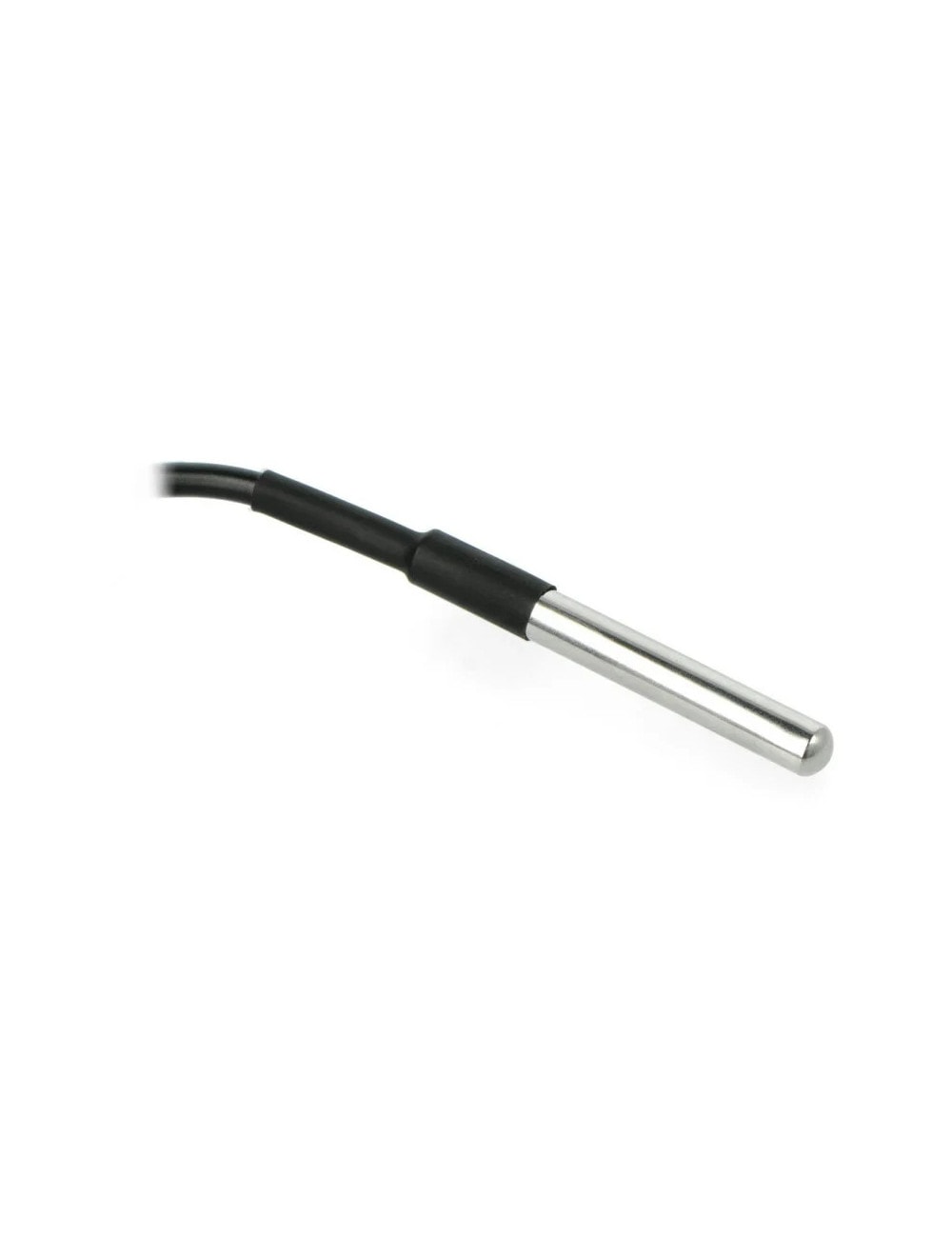

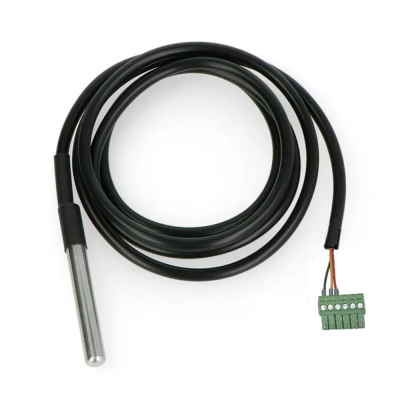

Temperature Sensor

High quality probe with temperature sensor for SMSEagle NXS-97xx Rev.3+ devices. Probe enclosed in a sealed and waterproof stainless steel housing. The purpose of the probes is to facilitate temperature measurement and SMS alerting.

Probe with temperature sensor
Compatible with NXS-97xx Rev.3 (and higher) devices
Cable length: 1m or 3m
Waterproof probe with stainless steel housing
Accuracy from -10°C to + 85°C: ± 0,5°C
Dimensions of the housing: 6 x 50 mm

Product Code for 1m: ACCTEMPSEN1

Product Code for 3m: ACCTEMPSEN3

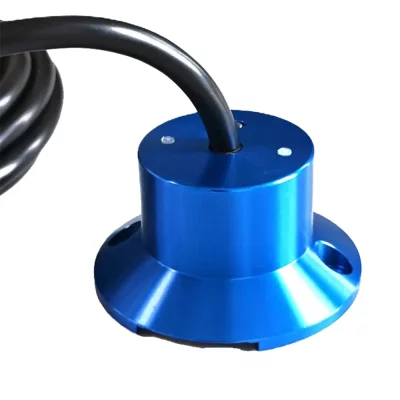

Water Leak Sensor

Industrial-grade water leak sensor/flood detector is IP66 rated, waterproof & dustproof. When the sensor detects a leakage, it will trigger a defined SMS message via SMSEagle to notify of potential danger.

The industrial grade water leak sensor detects and alerts of a potential water leak emergency. When the water comes into contact with the sensor probe, it activates a relay that can trigger SMS alarm sent from SMSEagle device. The water leak sensor is designed with industry-standard IP66 rated, featuring waterproof and dustproof. The control circuit possesses minimal potential energy, mitigating the risk of igniting flammable or combustible substances.

Features

Easy to install
Relay signal output compatible with SMSEagle digital input
The probe is made of alloy and durable, and with waterproof cable
Strong anti-interference and long-term stability
Dedicated connector for easier installation

Power Supply	5V
Operating Current	< 60mA
Quiescent Current	<25mA
IP Rating	IP66
Response Time	< 50ms
Measurement Medium	water
Operating Temperature	-5℃ ~ +60℃
Device Weight	200g
Dimensions	59 x 32 mm
Cable Length	3m

- The probe pole of the sensor is placed facing down to the ground vertically. The sensor should be placed in the lower spot in the flat area.
- If you need to detect a small amount of water (not to a certain depth), it’s a good practice to place a sponge tray under the probe.

Download PDF

Technical datasheet Water Leak Sensor

Product Code: ACCWATERLK

3G to 4G module replacement

Replacement service for NXS-97xx-3G Rev.2, Rev.3 family of devices. Includes replacement of 3G radio module to 4G radio module with global coverage.

If you already own a NXS-97xx-3G device and would like to upgrade it to 4G, this item will allow it. Please note, that this item is only for devices with hardware Rev.2, Rev.3 (MAC address starts with: 78:A7:14:55/56…)

It will be required to send your device to our Support Center for the radio module replacement. An additional cost of sending the device back to you will be added (depending on your destination country).

Price for 1 modem (must be multiplied for multimodem devices).

Product Code: ACC3GTO4GREPLACE

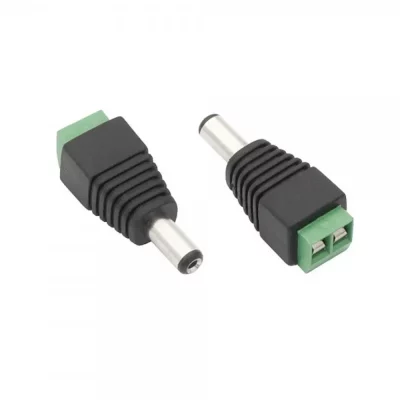

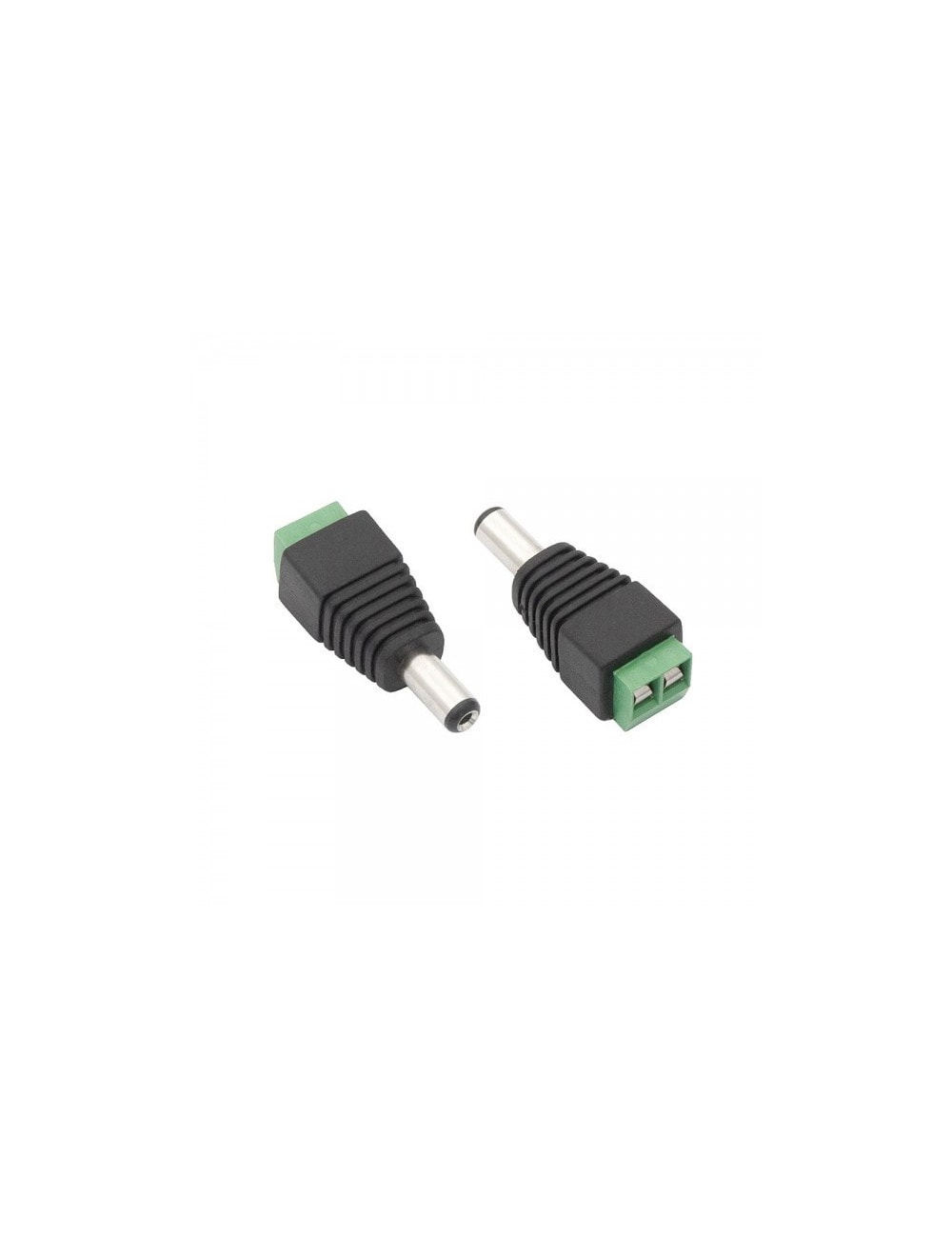

Power connector adapter

The power connector adapter allows NXS-line devices to be alternatively powered with a suitable socket. It has “+” and “-” markings on the housing. It should be remembered that this type of plug is adapted for low voltage, e.g. DC 12V.

Connector: plug
Type: DC power supply
Type: male
Outer diameter of the connector: 5.5mm
Connector inner diameter: 2.5mm
Mounting: terminal block connector

Product Code: ACCPWRCONADPT

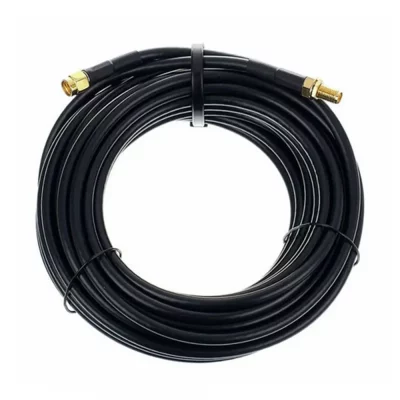

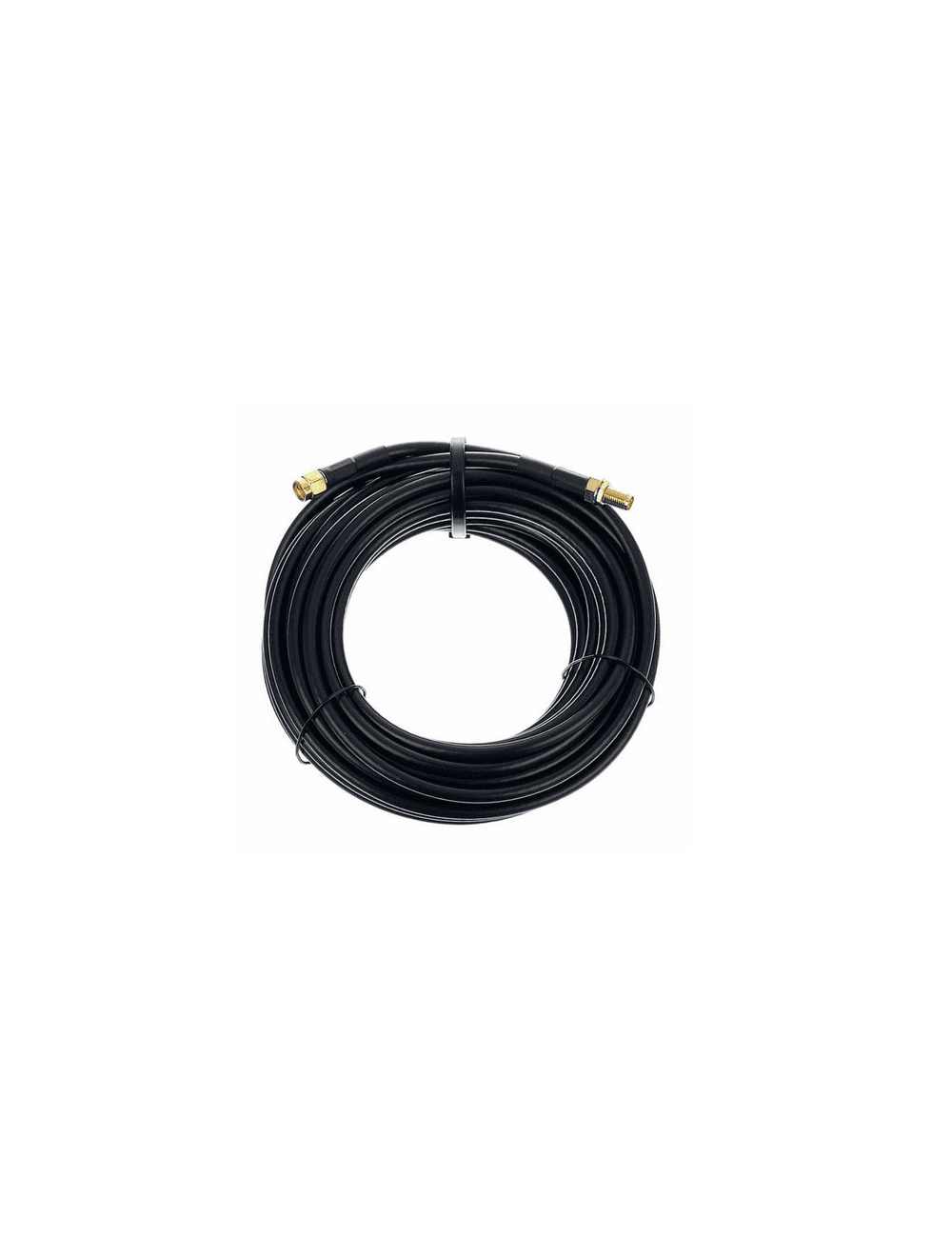

Antenna extension cable 10M

A low-loss H155 cable guarantee optimal electrical values with good flexibility. An additional shield made of aluminum foil reliably prevents stray radiation. Suitable for mobile radio applications. Compatible with every SMSEagle gateway and antenna model.

Due to the signal attenuation introduced by this extension cable, we recommend using only one extension cable and not combining them in series.

Length: 10 meters
Connector Type: SMA-F to SMA-M
Cable Type: H155
Impedance: 50 Ohm

Product Code: ACCEXTCABLE10

VoLTE module for Rev.3 device (replacement)

Replacement service for NXS-97xx-4G Rev.3 devices with enabled voice feature. Includes replacement of 4G radio module to a new module that supports VoLTE. This item is only for hardware Rev.3 devices in countries where carriers switched off the 3G network and the existing 4G radio module has lost the ability to make voice calls.

If you already own a NXS-97xx-4G Rev.3 device with voice feature enabled, and your radio module has lost the capability to make voice calls due to switched off 3G network, this item is for you. The item includes the replacement of a 4G radio module with a new module that supports VoLTE and is capable of making voice calls in 4G-only networks. Please note, that this item is only for devices with hardware Rev.3 (MAC address starts with: 78:A7:14:64/65…)
