Zabbix SMS alerts - integration manual

Here we describe how to use SMSEagle for Zabbix SMS alerts. The configuration is very straightforward – it should take you about 5 min to have it up and running.

SMSEagle is an offline hardware SMS gateway. Therefore no external connection to 3rd party system is required. All notifications are generated on-premise and sent directly to a cellular network. This solution can be used in secure installations without Internet access.

SMSEagle Setup

Create a new user in SMSEagle (menu Users > + Add Users, user access level: “User”).
Grant API access to the created user:
- click Access to API beside the newly created user
- Enable APIv2
- Generate new token
- For text messages, add access permissions in section Messages for: Send SMS, Send MMS.
- For voice alerting, add access permissions in section Calls for: Make a ring call, Make a TTS call, Make a TTS Advanced call.
- Save settings

Zabbix Setup

The configuration consists of a media type in Zabbix, which will invoke the webhook to send alerts to SMSEagle device through the Rest API.

In the Administration > Media types section, import the media_smseagle.yaml.

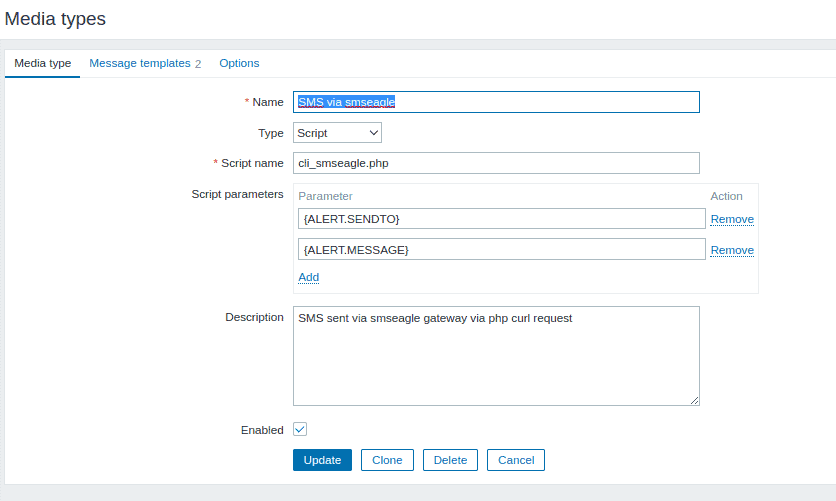

Open the newly added SMSEagle media type and replace all <PLACEHOLDERS> with your values.
The following parameters are required:

access_token – API access token created in SMSEagle
url – actual URL of your SMSEagle device (for example: http://10.10.0.100 or https://sms.mycompany.com)
type – type(s) of message(s) to send. Possible values: sms, mms, tts and tts_adv, respectively for SMS, MMS, TTS Call and Advanced TTS Call.
Allows multiple types, separated by commas (e.g. “sms,tts_adv”).

Other required parameters are message type specific. More information can be found on our APIv2 page.

3. in the Administration > Users click on a User, and add a new media called SMSEagle. Enter SMS recipient. Available recipient formats:

Phone number: phone_number
Contact in SMSEagle Phonebook: contact_name:c
Group in SMSEagle Phonebook:group_name:g

Multiple recipients can be separated by comma.

For more information, please see Zabbix documentation.

Zabbix Template (Optional)

If you would like to add a ready-to-use Zabbix template for monitoring your SMSEagle device in Zabbix:

Download the yaml template file from the repository: https://bitbucket.org/proximus/smseagle-zabbix-v2/downloads/
Import the template file to Zabbix: menu Configuration > Templates > Import.
Assign the template to your device in Zabbix.
