RCDevs OpenOTP SMS one-time passwords – integration manual

Here we describe how to setup RCDevs OpenOTP with SMSEagle for SMS one-time passwords.

SMSEagle is an offline hardware SMS gateway. Therefore no external connection to 3rd party system is required. All notifications are generated on-premise and sent directly to a cellular network.

This solution can be used in secure installations without Internet access.

SMSEagle Setup

RCDevs OpenOTP uses HTTP API requests (see details: API). All you have to do at SMSEagle is to create new user for API access at webGUI.

Create a new user in SMSEagle (menu Users > + Add Users, user access level: “User”).
Grant API access to the created user:
- click Access to API beside the newly created user
- Enable APIv1
- Generate new token (copy it for later use)
- Add access permissions in section APIv1 Permission for: send_sms, send_tocontact, send_togroup
- Save settings

RCDevs OpenOTP Setup

1. Download script custom1.php from our repository: https://bitbucket.org/proximus/smseagle-rcdevs_openotp/src
Place the plugin in your OpenOTP/smsc directory.

it will be used as “Custom 1”, but if you already use it for other configuration, you can rename file to “customX.php” and than edit “smshub_custom1” in line 27 to “smshub_customX” where X is number from 2 to 4.

2. All configuration related to SMS Gateway settings messages is done from the SMS Gateway configuration.

Configure with:

SMS Gateway and choose Custom1
SMSC Username is username for SMSEagle API user you just created.
SMSC Password is password for above user.
SMSC Custom Name fill with SMSEagle
SMSC URL or address: https://SMSEagle_IP
- where SMSEagle_IP is IP address of your gateway

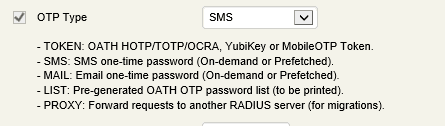

You must also define SMS as OTP token for every user in MFA application:
